RDS Heavy Duty Sprocket Live Roller Conveyors

RDS Heavy Duty Sprocket Live Roller Conveyors

Features

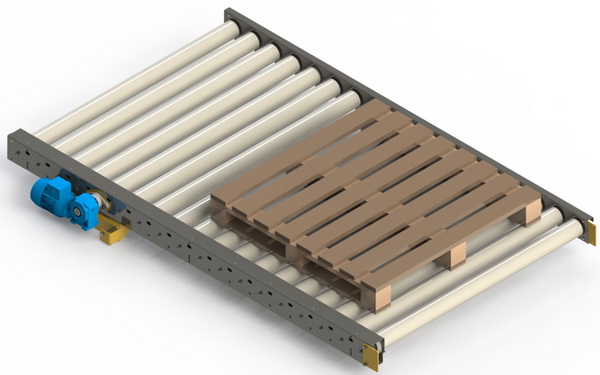

The Live Rollers Dual-Sprocket conveyor is a conveyor featuring heavy duty 89 mm rollers that are driven by chains linking the rollers.

The drive sprockets and chains are fully covered for safety reasons, and the drive unit can be mounted anywhere along the side channels, underneath the conveyor..

RDS Heavy Duty Sprocket Live Roller Conveyors

Characteristics

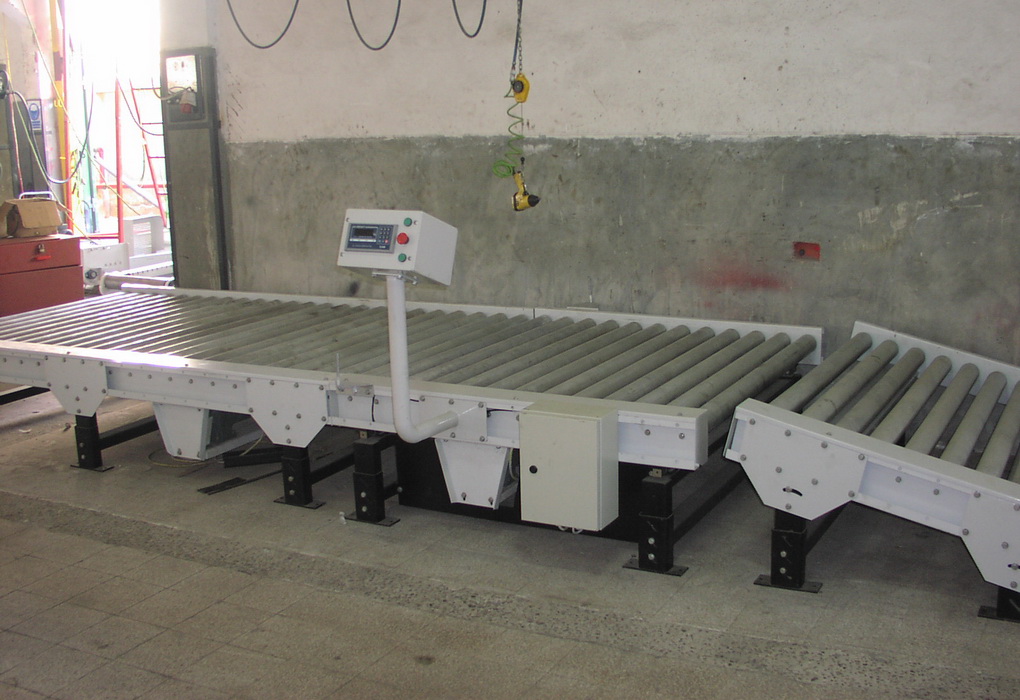

The RDS family of live rollers conveyors is a precision built sheet metal construction, heavy duty conveyor optimized for pallets handling.

Each roller features precision bearings, and two sprockets, which are used to drive rollers in tandem.

The rollers are set low, so that the side channels are used as side guides.
RDS Heavy Duty Sprocket Live Roller Conveyors

Applications

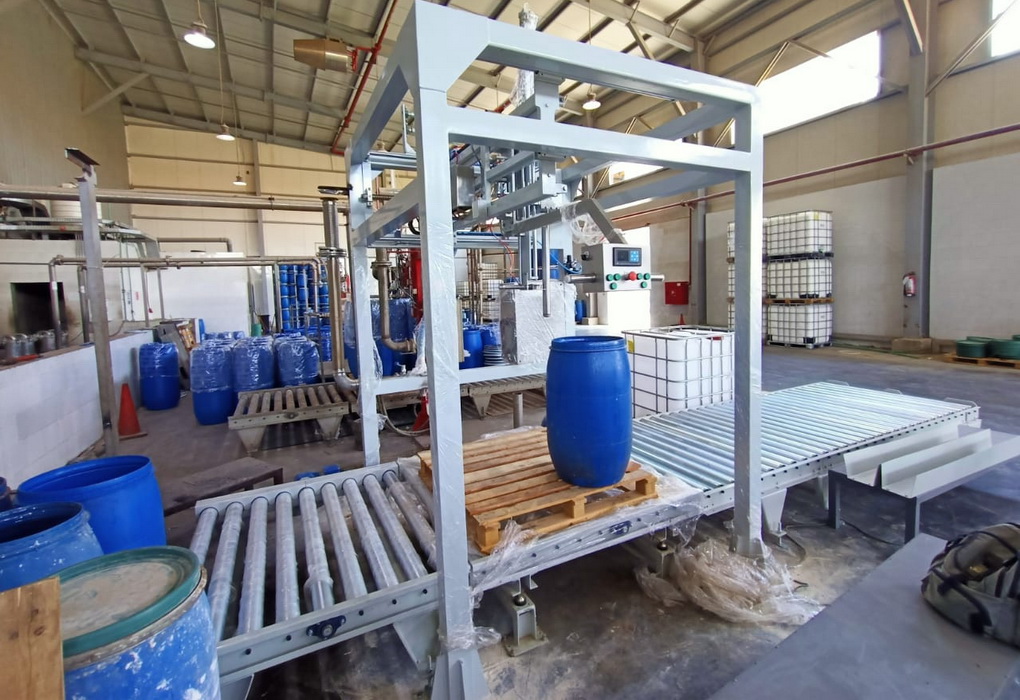

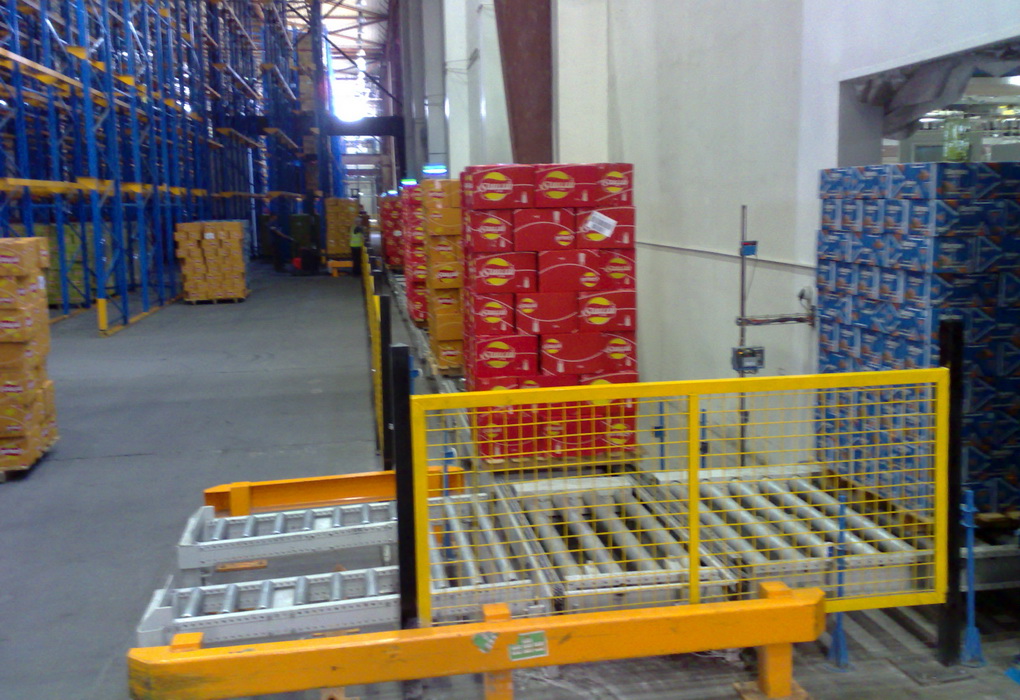

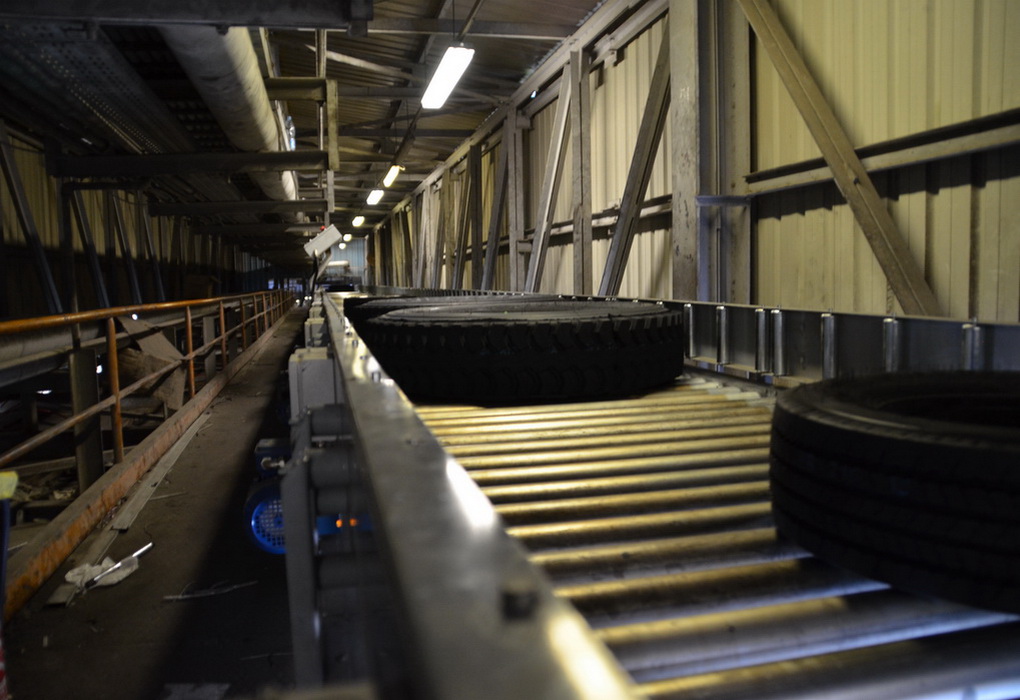

RDS live roller conveyors are used for handling pallets, large unit loads, cartons, boxes, crates, and similar items.

They are readily coupled with RHG heavy duty gravity roller conveyors, and CHT heavy duty chain conveyors and also DCR cross-chain or DRC cross roller systems, to offer a versatile solution to pallet and large load handling .

RDS Heavy Duty Sprocket Live Roller Conveyors

RDS Specifications

RDS Heavy Duty Sprocket Live Roller Conveyors

Specifications
Loading Capacity
14,000 N/m
Pulley Diameter 89 mm
Roller Pitch 134.5 , 214 mm
Pulley Type R89DS
Linear Speed 15 m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power 0.75 kW
Motor Class IP55
Insulation Class IP55
Paint Electrostatic Epoxy Powder RAL 5017 (Blue)
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 1200
Wo 1350

Standard Section Length
2421 with Roller Pitch 134.5 , 2354 with Roller Pitch 214
Options intermediate lengths available ( in Roller Pitch increments only)
Modules are attached together using Butt Couplings, to obtain any desired length.



OptionsAccessories
Floor Supports SGH Cross Bracing No
Brake Motor Yes Butt Coupling Yes
Bidirectional motion Yes Emergency Pull Cord No
Variable Speed Drives Yes Push Button Station Yes
    Optical Switches and Controls Yes
    End Stops Yes
    Guard Rails Yes
