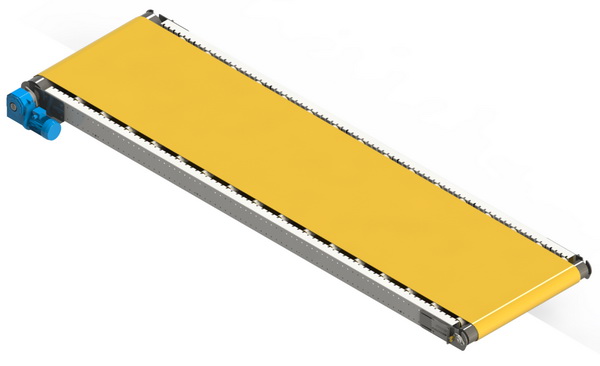

HBR Roller Bed Conveyor

HBR Roller Bed Conveyor

Features

The heavy duty sheet metal construction offers a rigid and stable chassis thus ensuring stability, strength and a prolonged belt life under heavy loads.

The belt slides over low friction quality rollers, which could be 50, 60 or 89 mm in diameter. Rollers are made of galvanized steel, featuring special low friction bearings.

HBR Conveyors can use synthetic resin belts (PVC, PU, Grip face, etc…) or rubber belts of the plain type or with chevrons.

HBR Roller Bed Conveyor

Characteristics

The side channels have precision punched holes and slots that offer a flexible scheme for placing the supporting rollers, and permit the attachment of many accessories, such as side tables, skirts, brackets, guides, etc…

The supporting rollers' pitch could be changed to suit the material being transported.

The drive pulley is driven by integral reducers, either shaft mounted or sprocket driven.

HBR Roller Bed Conveyor

Applications

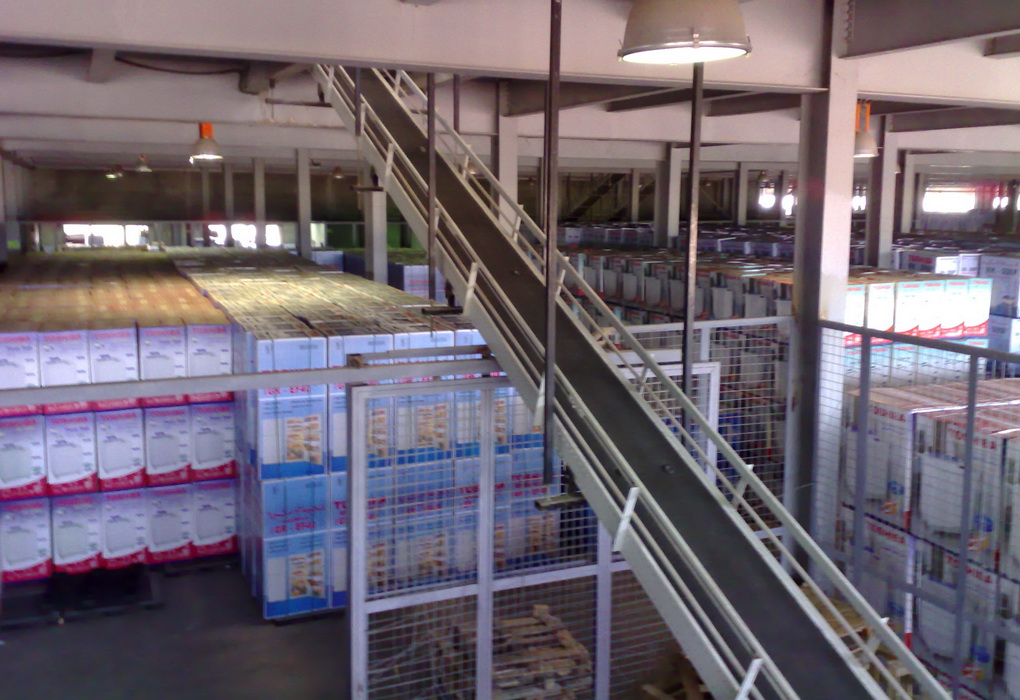

HBR conveyors are used extensively in warehouses, production facilities, assembly lines, and general conveyance of medium to heavy loads ( up to 300 Kg/m) over relatively long distances.

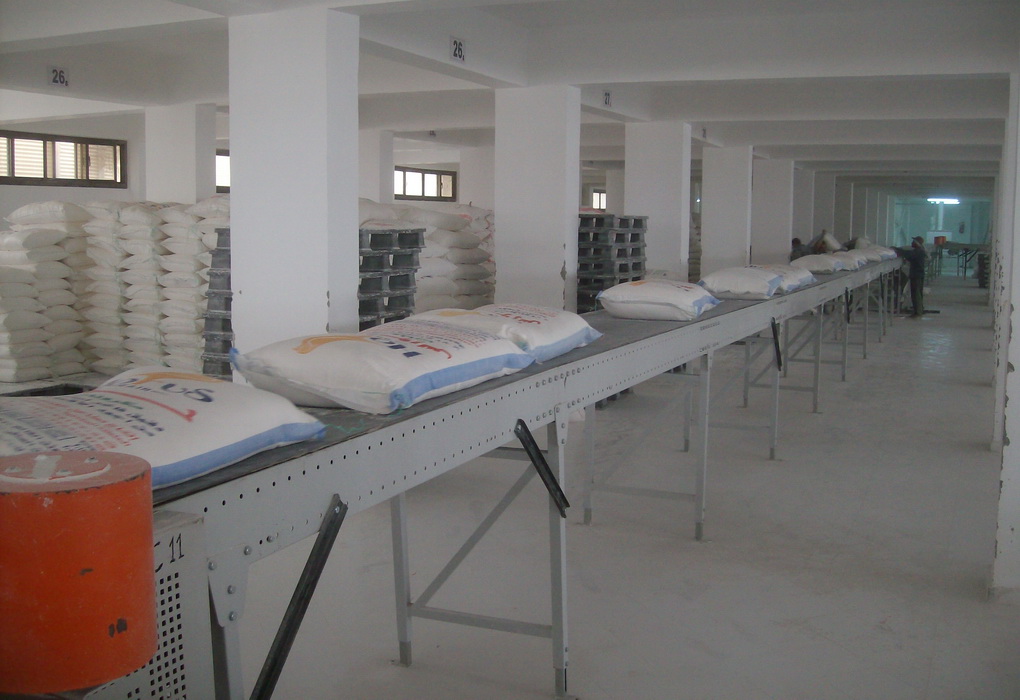

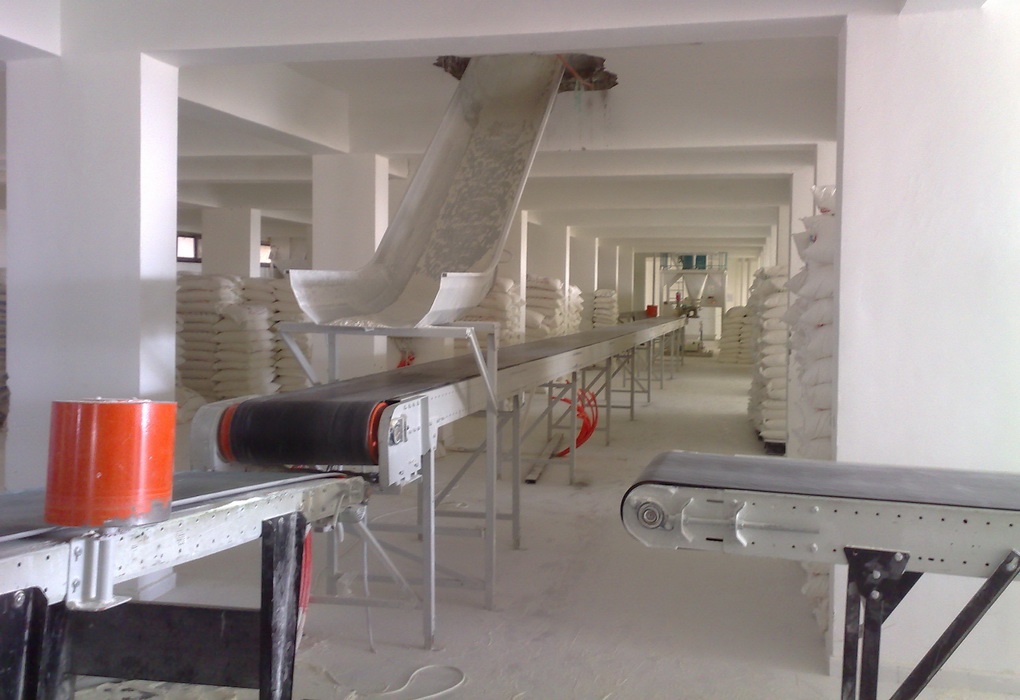

They typically move unit goods such as cartons, crates, tires, flour sacks, cement sacks, machine parts, etc...and can be mounted on casters for mobility where several units can be linked to obtain a flexible conveying system.

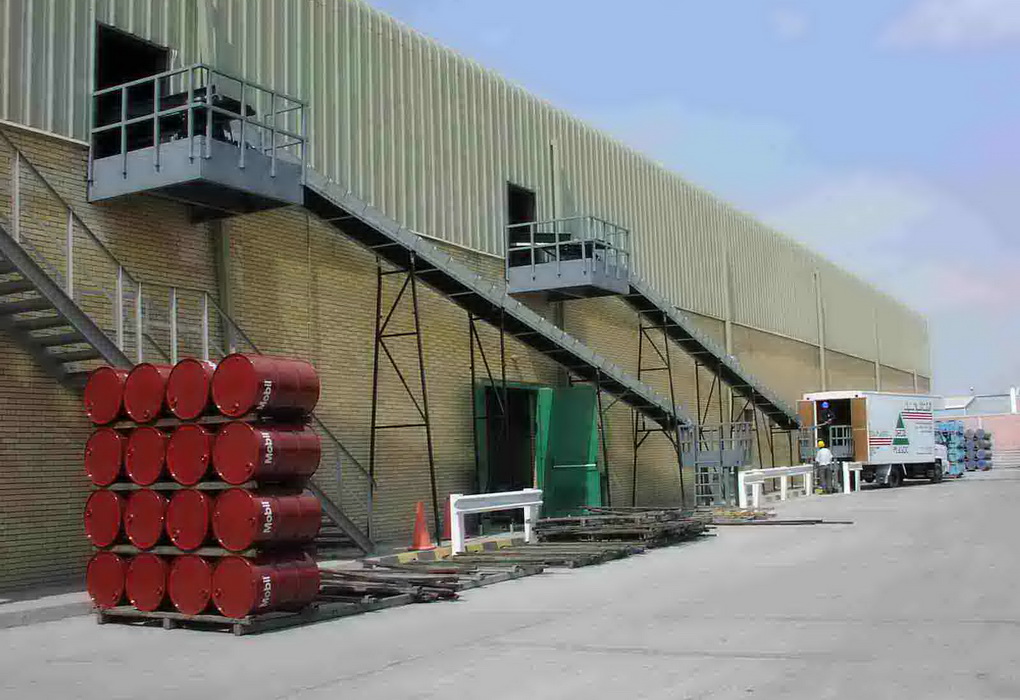

HBR conveyors can be floor mounted, suspended from ceilings using hangers, or wall mounted using brackets

HBR Roller Bed Conveyor

HBR Specifications

HBR Roller Bed Conveyor

Specifications
Drive & Take Up Diameter Ø168 , 273 mm
Return Rollers Diameter Ø50 , 60 mm
Return Rollers Pitch 2400 mm
Roller Diameter Ø50 , 60 , 89 mm
Roller Pitch 240 mm
Take-up Distance 140 mm
Linear Speed 5,10,20,40,80 m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power Calculated based upon belt loading and conveyor length
Motor Class IP54
Insulation Class IP54
Belt Materials Synthetic Resins, PVC , PU, Chevrons Rubber, 2 Ply rubber
Paint Electrostatic Epoxy Powder RAL 7035
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 400 500 650 800 1300 for Roller Diameter 89 mm
Wo 484 592 754 916 1456

Standard Section Length
2400
Options intermediate lengths available ( in 60 mm increments only)
Modules are attached together using Butt Couplings, to obtain any desired length.



Accessories
Under-Trussing Yes Delivery ( Head end) Hopper No
Cross Bracing Yes Head Pulley Hood No
Butt Coupling Yes Inside scraper Yes
Nose Wheel Yes Outside Scrapers Yes
Front Bumper Yes Emergency Pull Cord Yes
Tail Bumper Yes Brake Rollers No
End Stops Yes Troughing Attachment. No
Deflector No Optical Switches and Controls Yes
Drip Pan No Push Button Station Yes
Chutes No Pushers No
Guard Rails Yes Back Stops Yes
Side Skirts Yes Longitudinal Side Tables No
Feed (Tail end) Hopper No Individual Side Tables No
