LSC Light Duty Slider Bed Conveyor

LSC Light Duty Slider Bed Conveyor

Features

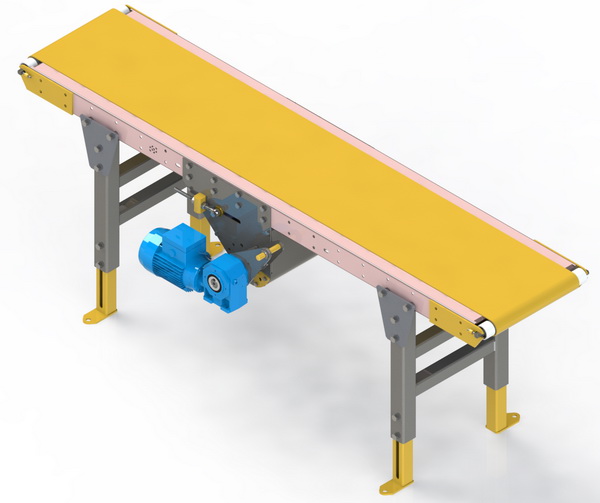

Light slider bed conveyors general purpose, light load units specifically designed for limited space applications. The synthetic belt slides over a solid stationary bed. The sheet metal construction of this conveyor is rigid and offers a stable one-piece chassis on which head and tail pulleys are mounted.
LSC Light Duty Slider Bed Conveyor

Characteristics

The LSC family of conveyors accepts many accessories which make it a very flexible and versatile building block.

It can be fitted with hoppers, chutes, belt troughing attachments, side tables, inverters for variable belt speed. The belts can be standard PVC types, Polyurethane accumulation types, or FDA approved food grade types.

The drive unit can be mounted at the end of the conveyor or in center-drive configuration.

LSC Light Duty Slider Bed Conveyor

Applications

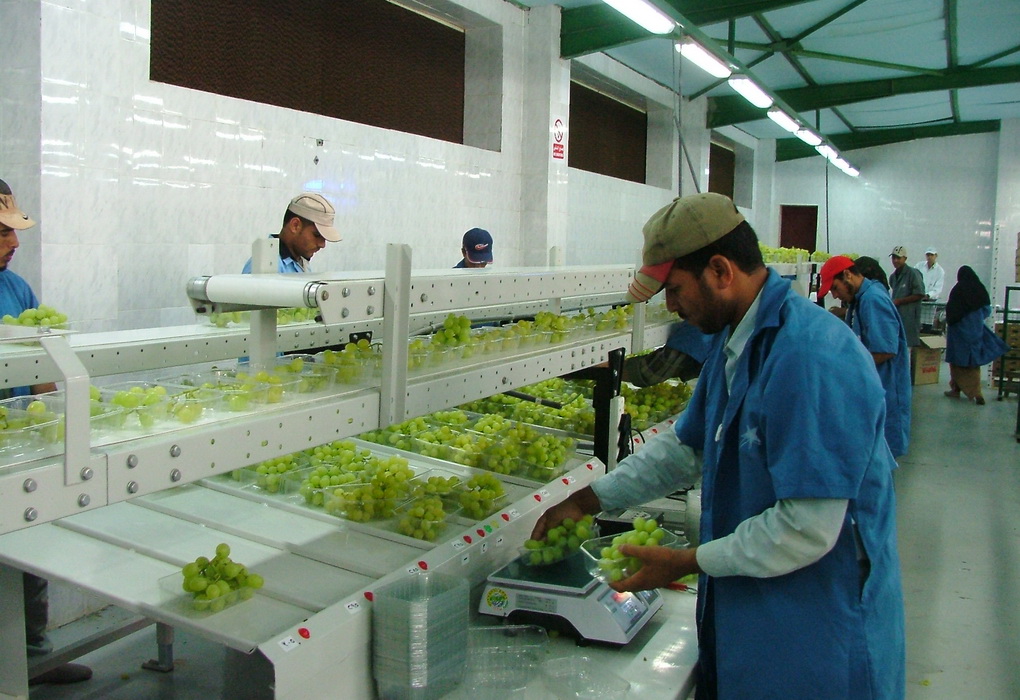

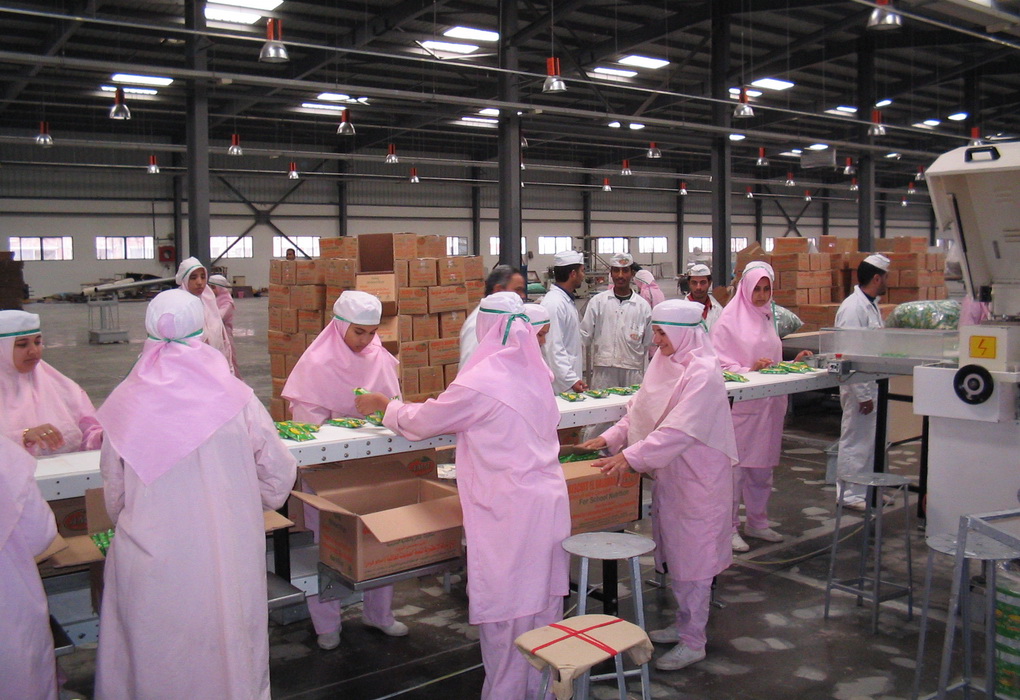

LSC Conveyors are mainly used to handle light loads in confectionaries, food industry, pharmaceuticals, inkjet printing, micromechanical assembly systems, where size and weight are to be minimized.

LSC conveyors can also be manufactured in Stainless Steel for applications in food processing, or wet environment, and fitted with FDA approved belting.

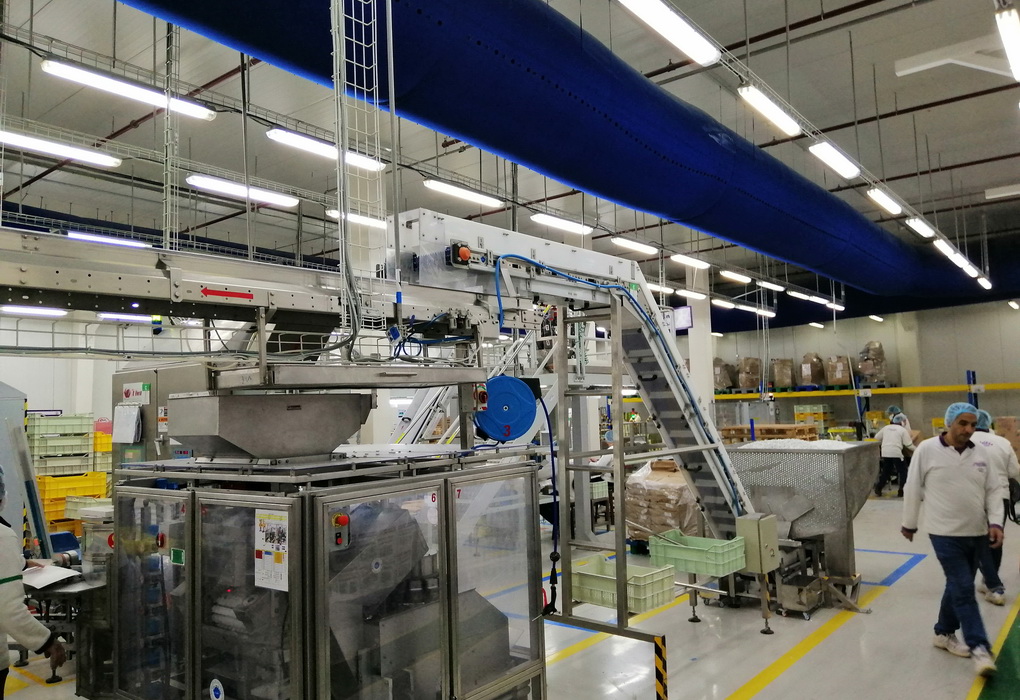

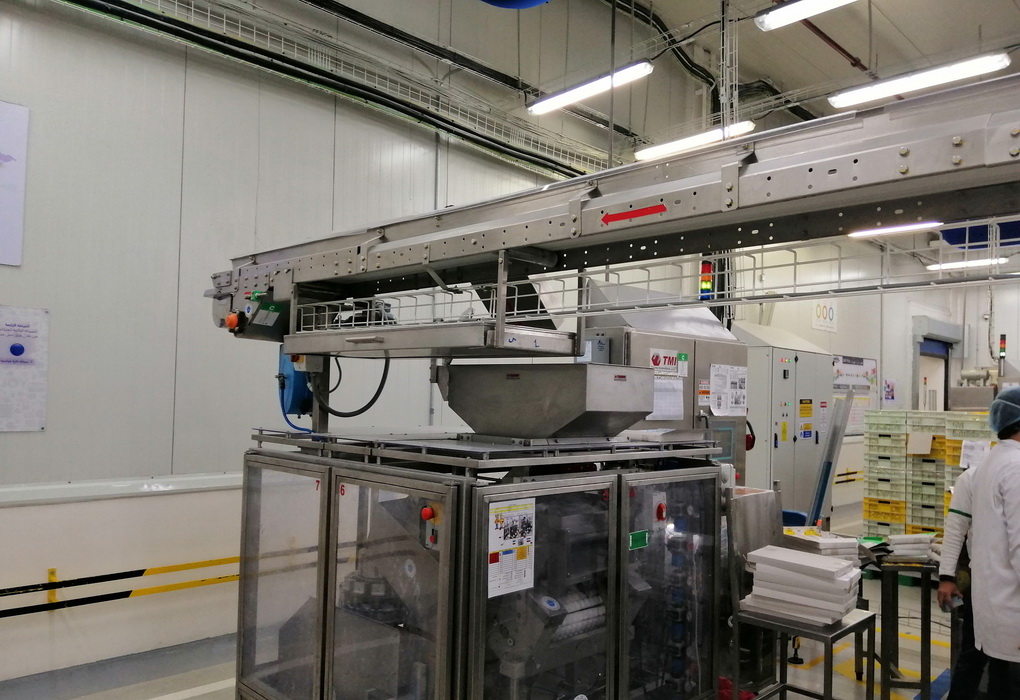

LSC conveyors can be floor mounted, suspended from ceilings using hangers, or wall mounted using brackets

Belt types depend on the load being carried.

LSC Light Duty Slider Bed Conveyor

LSC Specifications

LSC Light Duty Slider Bed Conveyor

Specifications
Loading Capacity 100 ~ 300 N/m
Drive Pulley Diameter Ø100 mm
Take Up Pulley Diameter Ø75 mm
End Pulley Diameter Ø43 mm
Return Rollers Diameter Ø50 mm
Return Rollers Pitch 1215 , 2430 mm
Take-up Distance 80 mm
Linear Speed 14, 19, 23, 28 m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power 0.37 ~ 0.5 kW
Motor Class IP54
Insulation Class IP54
Belt Materials PVC, PU, FDA Approved Food Grade PVC
Paint Electrostatic Epoxy Powder RAL 7035 (beige) or 5017 (blue)
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 100 150 200 250 300 400 500
Wo 158 212 266 320 374 482 590

Standard Section Length
2430
Options intermediate lengths available ( in 90 mm increments only)
Modules are attached together using Butt Couplings, to obtain any desired length.



Options
Floor Supports SGL
Ceiling Hangers SCH
Wall Mount SWB
Head pulley lagging No
V-Belt Underside Guide No
Grip Face Belt Material No
Cleated Belts No
Corrugated Belt Sides No
Accumulation Belt Material (PU) Yes
Overhead Drive Yes
Left or Right Side Drive Yes
Center Drive Yes
Brake Motor No
Bidirectional motion Yes
Variable Speed Drives Yes
Stainless Steel Construction Yes



Accessories
Long-span Under-Trussing No Delivery ( Head end ) Hopper No
Cross Bracing No Head Pulley Hood No
Butt Coupling Yes
Nose Wheel No Outside Scrapers Yes
Front Bumper No Emergency Pull Cord No
Tail Bumper No
End Stops Yes Troughing Attachment. Yes
Deflector Yes Optical Switches and Controls Yes
Drip Pan Yes Push Button Station Yes
Chutes Yes Pushers Yes
Guard Rails Yes Back Stops No
Side Skirts Yes Longitudinal Side Tables Yes
Feed (Tail end) Hopper Yes Individual Side Tables Yes
