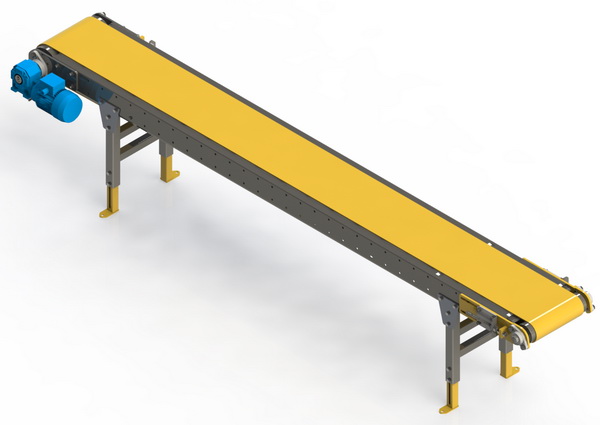

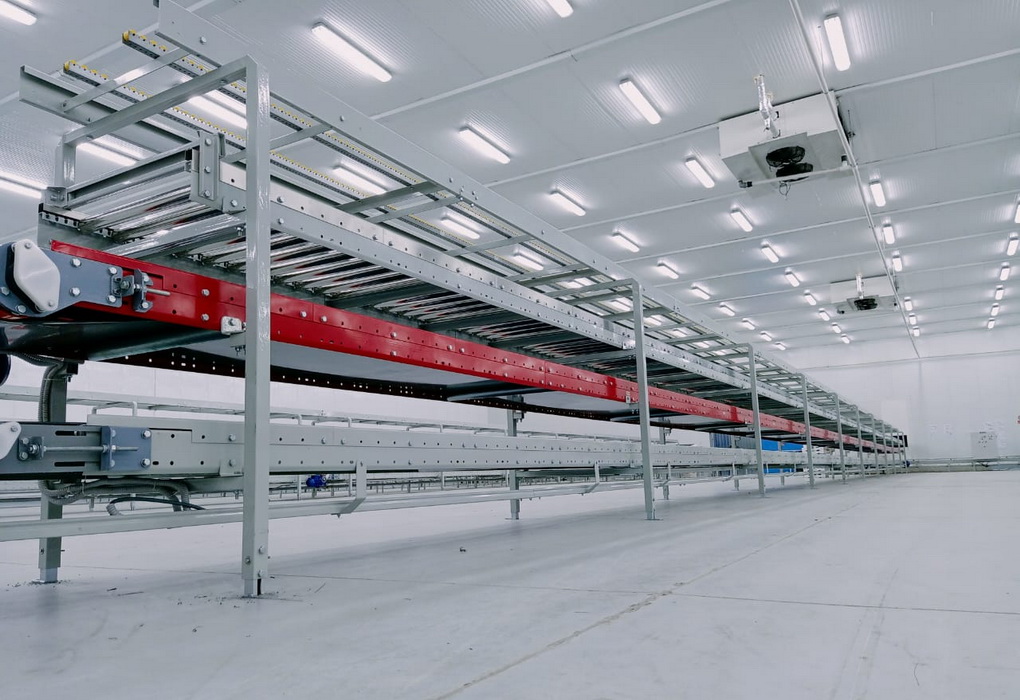

HSC Heavy Duty Slider Bed Conveyor

HSC Heavy Duty Slider Bed Conveyor

Features

This type of conveyor is a general purpose conveyor where the synthetic belt slides over a solid stationary bed. The sheet metal construction of this conveyor is rigid and offers a stable chassis on which head and tail pulleys are mounted.
HSC Heavy Duty Slider Bed Conveyor

Characteristics

The HSC family of conveyors accepts many accessories which makes it a very flexible and versatile building block.

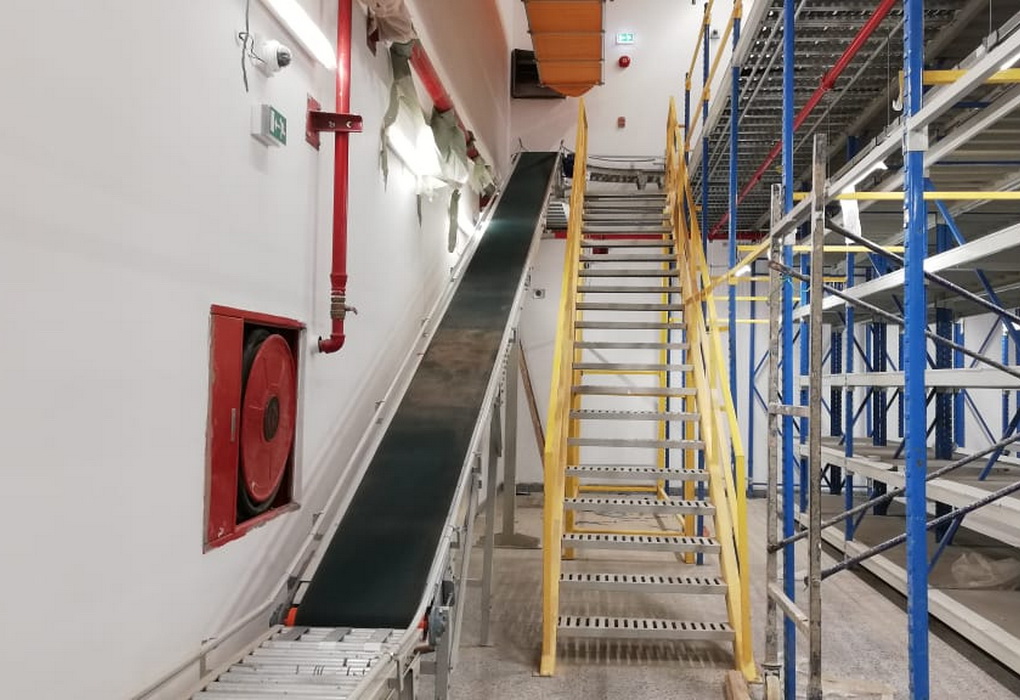

It can be fitted with hoppers, chutes, belt troughing attachments, side tables, inverters for variable belt speed. The belts can be standard PVC types, food grade types, cleated with corrugated sides for steep angle elevators, or grip-face type for inclined applications.

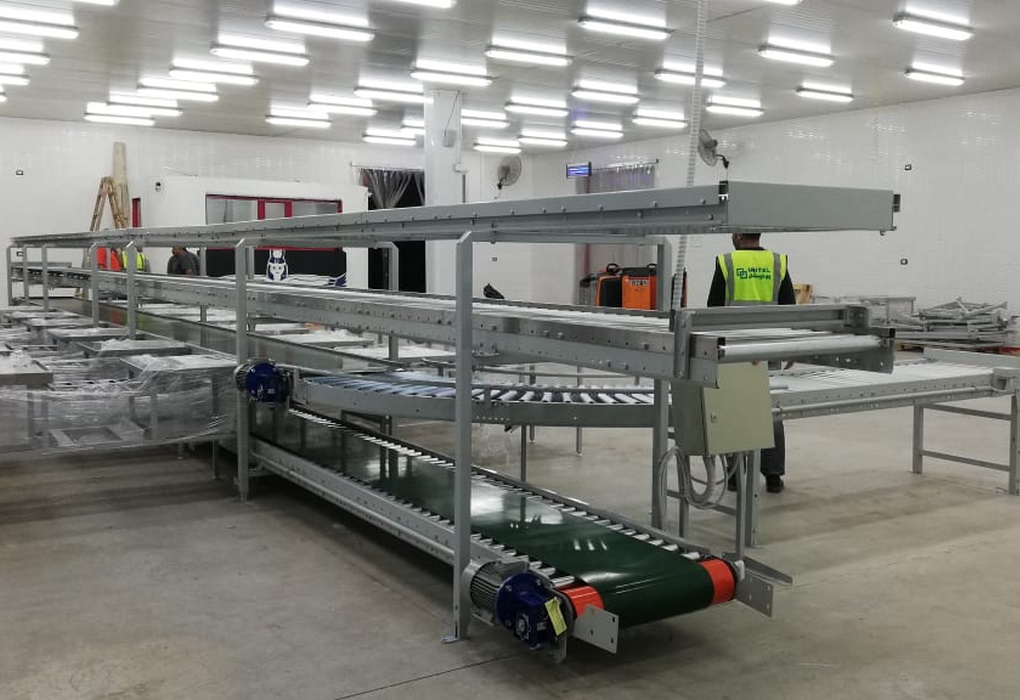

This family is compatible with the Gravity Roller Conveyor family RLG
HSC Heavy Duty Slider Bed Conveyor

Applications

HSC Conveyors are low cost heavy duty conveyors capable of transporting medium loads (20-50 Kg/m) over distances of up to 12 meters.

They are used in general purpose transportation of a great variety of unit goods, of any size and shape, in chemical, engineering, food, process, and pharmaceutical industries.

HSC conveyors can also be manufactured in Stainless Steel for applications in food processing, or wet environment, and fitted with FDA approved belting.

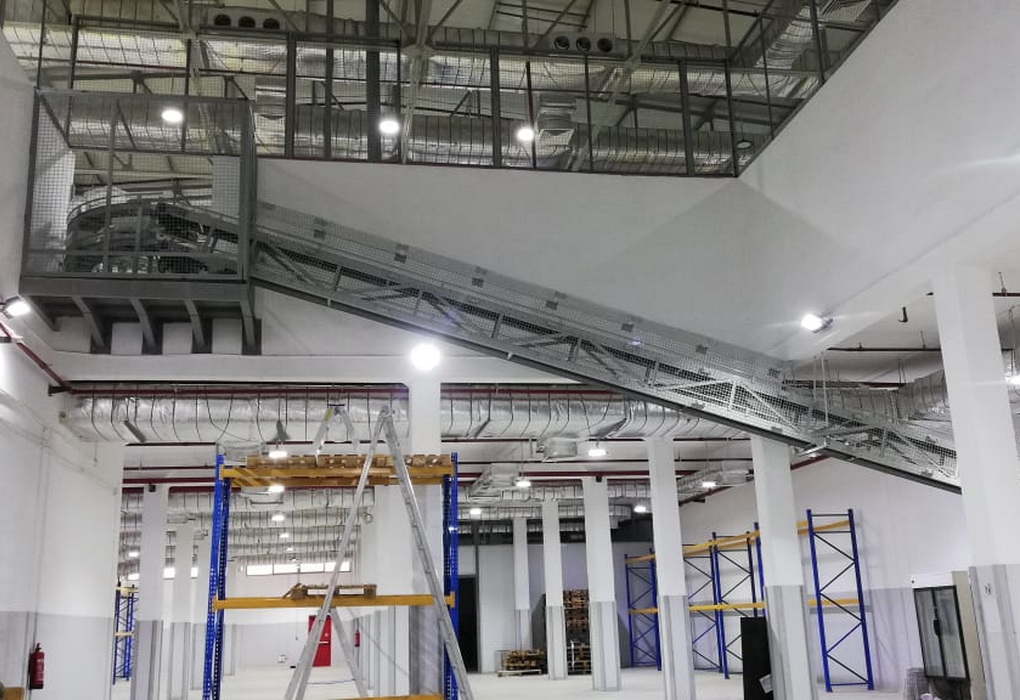

HSC conveyors can be floor mounted, suspended from ceilings using hangers, or wall mounted using brackets

HSC Heavy Duty Slider Bed Conveyor

HSC Specifications

HSC Heavy Duty Slider Bed Conveyor

Specifications
Loading Capacity 200 to 500 N/m
Head Pulley Diameter Ø168 mm
Take Up Pulley Diameter Ø100 ,168 mm
Return Rollers Diameter Ø50 mm
Return Rollers Pitch 1215 , 2430 mm
Take-up Distance 120mm
Linear Speed Sprocket driven 18, 23, 28, direct drive 28,33, m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power Calculated based upon belt loading and conveyor length
Motor Class IP54
Insulation Class IP54
Belt Materials PVC , PU, Cleated
Paint Electrostatic Epoxy Powder RAL 7035
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 300 400 500 600 700 800
Wo 386 486 586 686 786 886

Standard Section Length
2430
Options intermediate lengths available ( in 90 mm increments only)
Modules are attached together using Butt Couplings, to obtain any desired length.



Options
Floor Supports SGL
Ceiling Hangers Yes
Wall Mount Yes
Head pulley lagging Yes
V-Belt Underside Guide Yes
Grip Face Belt Material Yes
Cleated Belts Yes
Corrugated Belt Sides Yes
Accumulation Belt Material (PU) Yes
Overhead Drive Yes
Left or Right Side Drive Yes
Brake Motor Yes
Bidirectional motion Yes
Variable Speed Drives Yes
Stainless Steel Construction Yes



Accessories
Long-span Under-Trussing Yes Delivery ( Head end) Hopper Yes
Cross Bracing Yes Head Pulley Hood No
Butt Coupling Yes Inside scraper Yes
Nose Wheel Yes Outside Scrapers Yes
Front Bumper Yes Emergency Pull Cord Yes
Tail Bumper Yes Brake Rollers No
End Stops Yes Troughing Attachment. Yes
Deflector Yes Optical Switches and Controls Yes
Drip Pan Yes Push Button Station Yes
Chutes No Pushers Yes
Guard Rails Yes Back Stops No
Side Skirts Yes Longitudinal Side Tables Yes
Feed (Tail end) Hopper Yes Individual Side Tables Yes
