TBC Telescopic Belt Conveyor

TBC Telescopic Belt Conveyor

Features

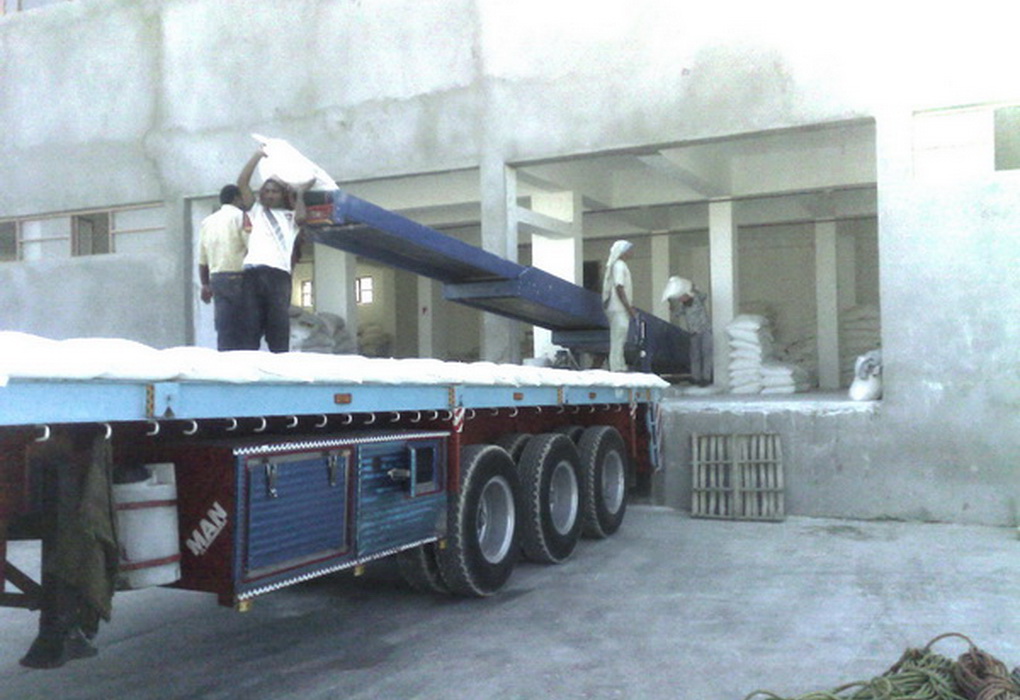

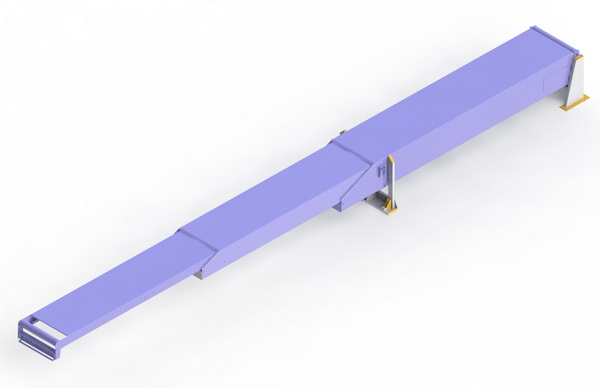

The Telescopic Belt Conveyor TBC is a dual boom extendable conveyor used on docks and platforms for reaching right to the end of vehicles and containers.

The TBC conveyor can carry most types of materials such as boxes, cartons, sacks, crates, and unit goods.

Optionally it can be fitted with a raising and lowering mechanism that helps to deliver goods at the required height.

It can dramatically reduce the time and effort it takes to load and unload trucks and containers thus paying for itself over a short time.
TBC Telescopic Belt Conveyor

Characteristics

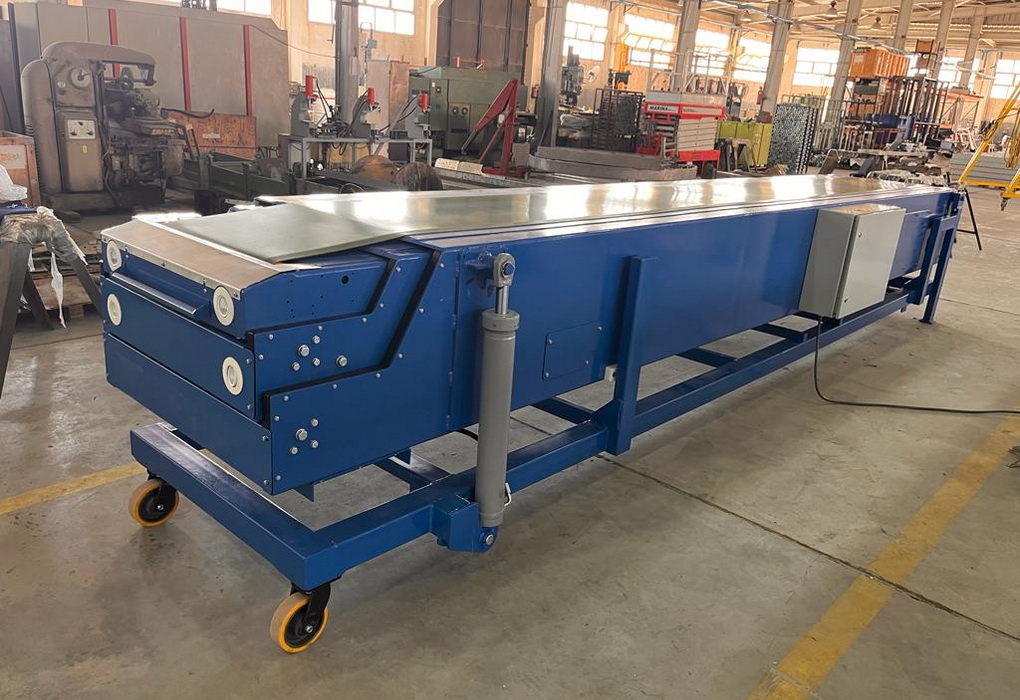

Reinforced sheet metal frame construction.

Smooth dual sliding action of booms

TBC belt and boom position controlled by push button panel mounted at the front of the telescopic boom.

Optional hydraulic system raises and lowers the conveyor.

Safety bar at front disables boom advance in case of presence of a person in front of the conveyor.

TBC Telescopic Belt Conveyor

Applications

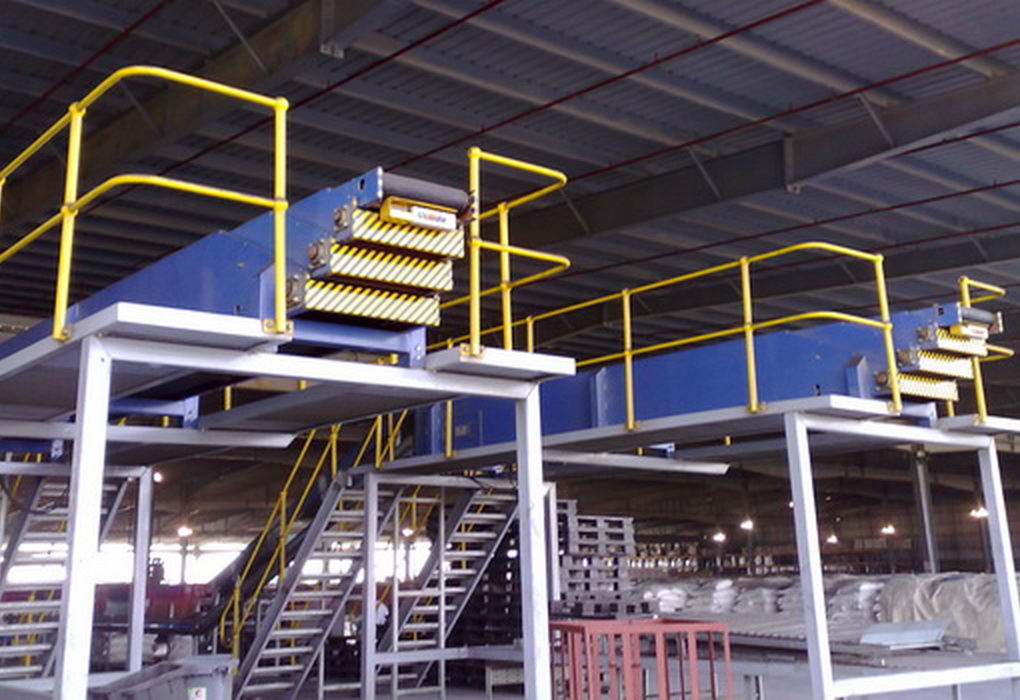

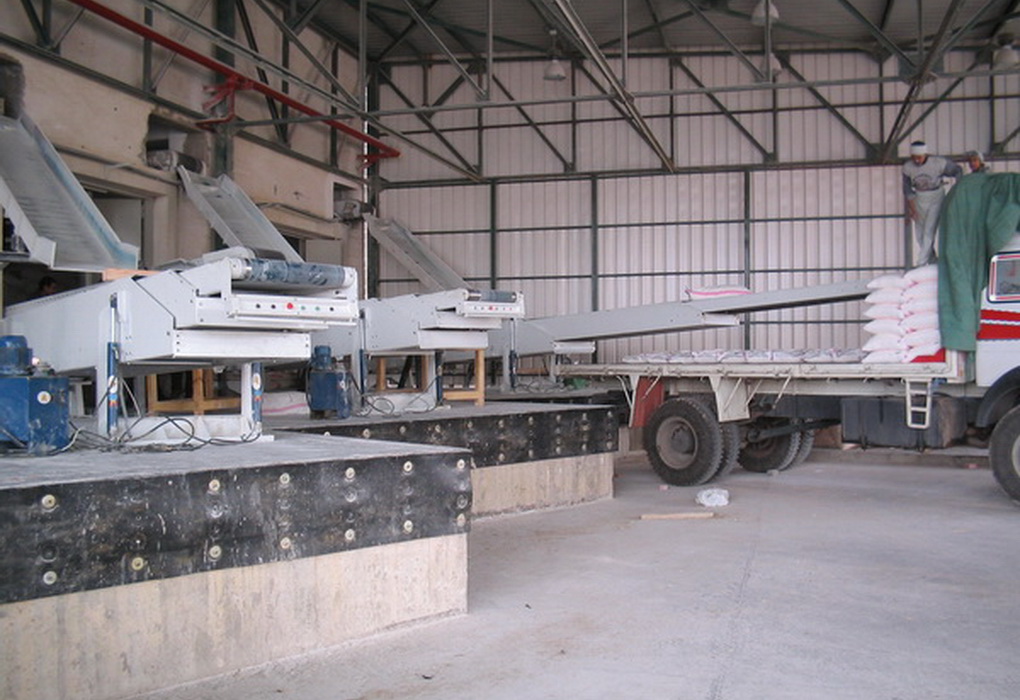

The TBC Telescopic Conveyor is used in warehouses, shipping and receiving docks, refrigerators, and cold stores, cement, petrochemicals, flour mills, and all applications requiring cost effective and quick loading and unloading of trucks, and containers.
TBC Telescopic Belt Conveyor

TBC Specifications

TBC Telescopic Belt Conveyor

TBC Telescopic Belt Conveyor

Specifications
Loading Capacity 500 N/m
Number of booms 2 (optionally 3 by special order)
Telescopic Drive Positive Chain Drive
Linear Speed 25 m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power 2.2 kW
Motor Class IP54
Insulation Class IP54
Belt Materials PVC Smooth Face
Paint Electrostatic Epoxy Powder RAL 7035
Dimensions
Total Retracted length 5700 MM
Overall Extended Length (2 booms) 12,000 MM
Rear Side Height 997 MM
Extended Boom Maximum Height 2400 MM
Extended Boom Minimum Height 1100 MM
Chassis Width 970 MM



Options
Variable Speed Drives Yes
Soft Start for Telescopic Action Yes

Accessories
Hydraulic Height Adjustment Yes
Head Lamp Yes
