HYB Hybrid Conveyors

HYBHYB Hybrid Conveyors

Features

The heavy duty sheet metal construction offers a rigid and stable chassis thus ensuring stability, strength and a prolonged belt life under heavy loads.

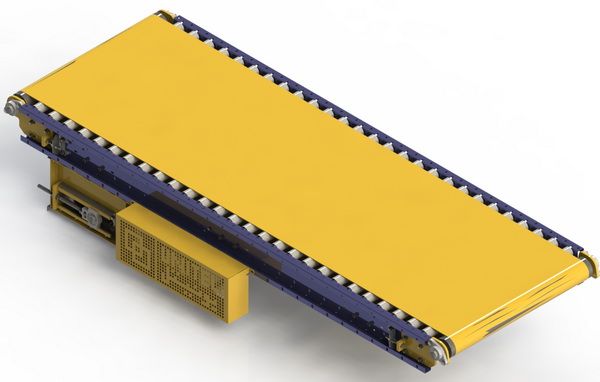

With this type of conveyors it is possible to have a hybrid slider-bed thus mixing slider bed and rollers in any configuration..

HYB Conveyors can use synthetic resin belts (PVC, PU, Grip face, etc…) or rubber belts of the plain type or with chevrons.

Also they can have a center-drive unit including the belt tensioning pulley, which could be positioned anywhere along the conveyor length.

These conveyors can also have a 45 degree merge or diverge unit attached to them.

HYB Hybrid Conveyors

Characteristics

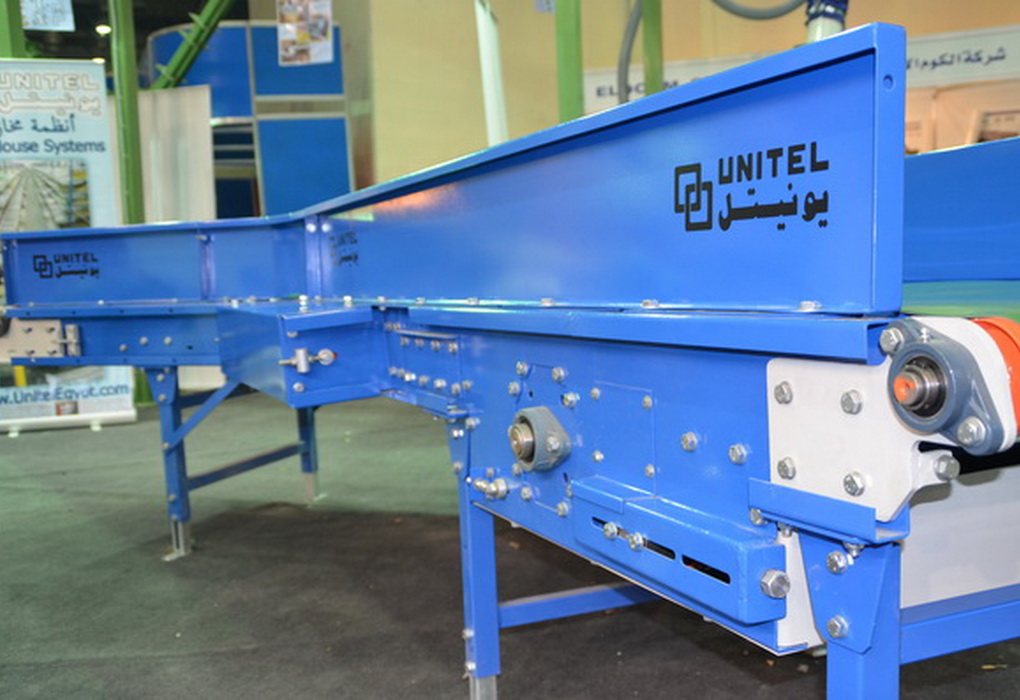

The side channels have precision punched holes and slots that offer a flexible scheme for placing the supporting rollers, and permit the attachment of many accessories, such as side tables, skirts, brackets, guides, etc…

The supporting rollers' pitch could be changed to suit the material being transported.

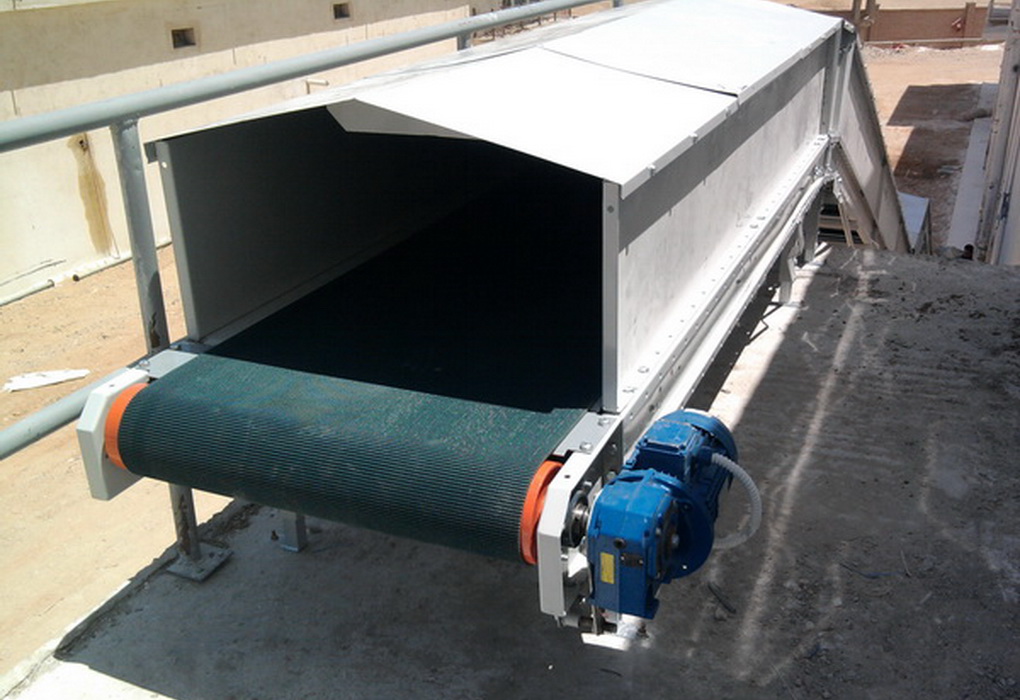

The drive pulley is driven by integral reducers, either shaft mounted or sprocket driven. The drive unit could be also of the center-drive type with its integral belt tensioning system.

HYB Hybrid Conveyors

Applications

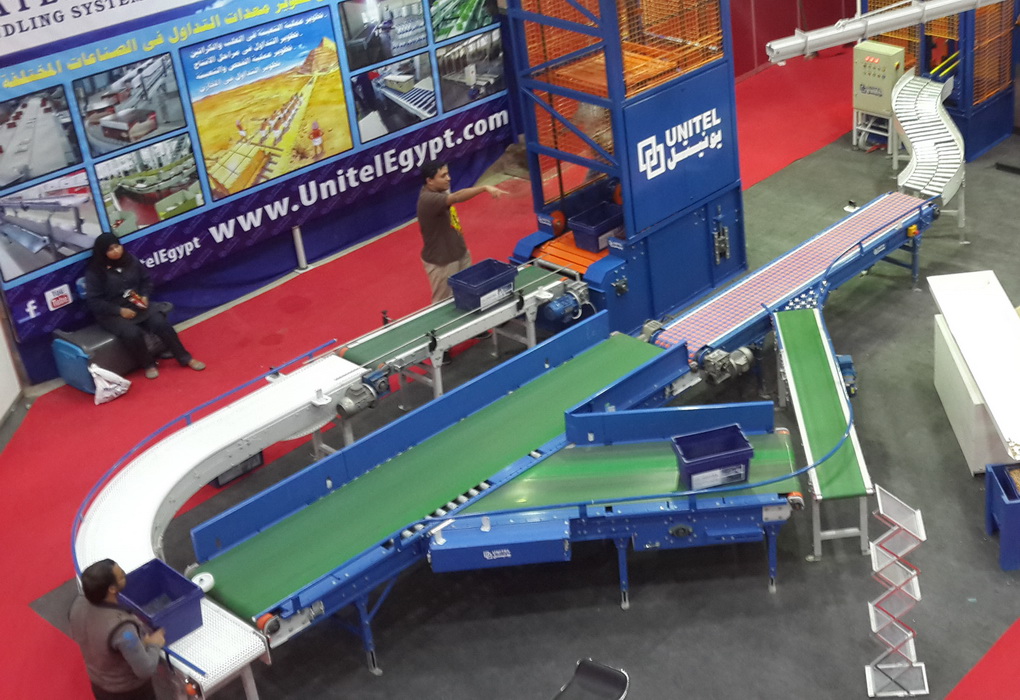

HYB conveyors are used extensively in warehouses, airports , and general conveyance of medium to heavy loads ( up to 300 Kg/m) over relatively long distances.

They typically move unit goods such as cartons, crates, tires, sacks, and travel bags etc...and can be mounted on several types of special units for re-routing applications.

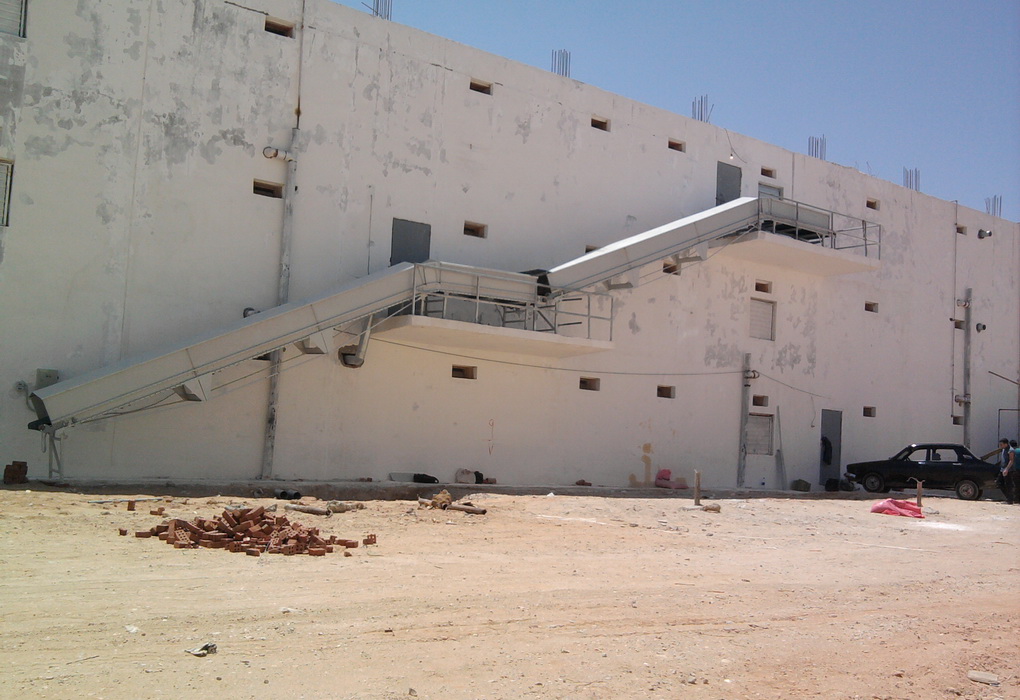

HYB conveyors can be floor mounted, suspended from ceilings using hangers, or wall mounted using brackets

HYB Hybrid Conveyors

HYB Specifications

HYB Hybrid Conveyors

Specifications
Head Pulley Diameter Ø168 , 273 mm
Take Up Pulley Diameter Ø100 ,168 mm
Return Rollers Diameter Ø50 mm
Return Rollers Pitch 2400 mm
Roller Diameter Ø50 mm
Roller Pitch 90 , 180 , 270 mm
Take-up Distance 200 mm
Linear Speed 5,10,20,40,80 m/min
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power Calculated based upon belt loading and conveyor length
Motor Class IP54
Insulation Class IP54
Belt Materials PVC , PU
Paint Electrostatic Epoxy Powder RAL 5017 (Blue)
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 400 500 600 700 800
Wo 560 660 760 860 960

Standard Section Length
2430
Options intermediate lengths available ( in 90 mm increments only)
Modules are attached together using Butt Couplings, to obtain any desired length.



OptionsAccessories
Floor Supports SGL Under-Trussing No Delivery ( Head end) Hopper No
Ceiling Hangers Yes Cross Bracing No Head Pulley Hood No
Wall Mount Yes Butt Coupling Yes Inside scraper No
Head pulley lagging Yes Nose Wheel No Outside Scrapers No
Left or Right Side Drive Yes Front Bumper No Emergency Pull Cord Yes
Brake Motor Yes Tail Bumper No Brake Rollers No
Bidirectional motion Yes End Stops Yes Troughing Attachment. No
Variable Speed Drives Yes Deflector Yes Optical Switches and Controls Yes
Stainless Steel Construction Yes Drip Pan No Push Button Station Yes
    Chutes No Pushers No
    Guard Rails Yes Back Stops No
    Side Skirts Yes Longitudinal Side Tables No
    Feed (Tail end) Hopper No Individual Side Tables No
