CHN & CHA Chain Conveyors

CHN & CHA Chain Conveyors

Features

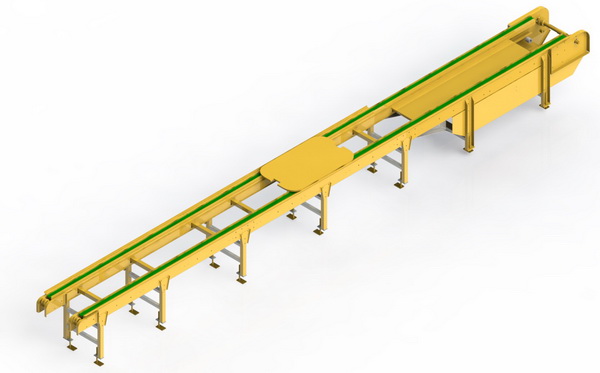

The accumulation chain conveyors are built to withstand the rigors of the production line environment. Reliability is built-in through a proven design, and is flexible enough to be used in a multitude of industries
CHN & CHA Chain Conveyors

Characteristics

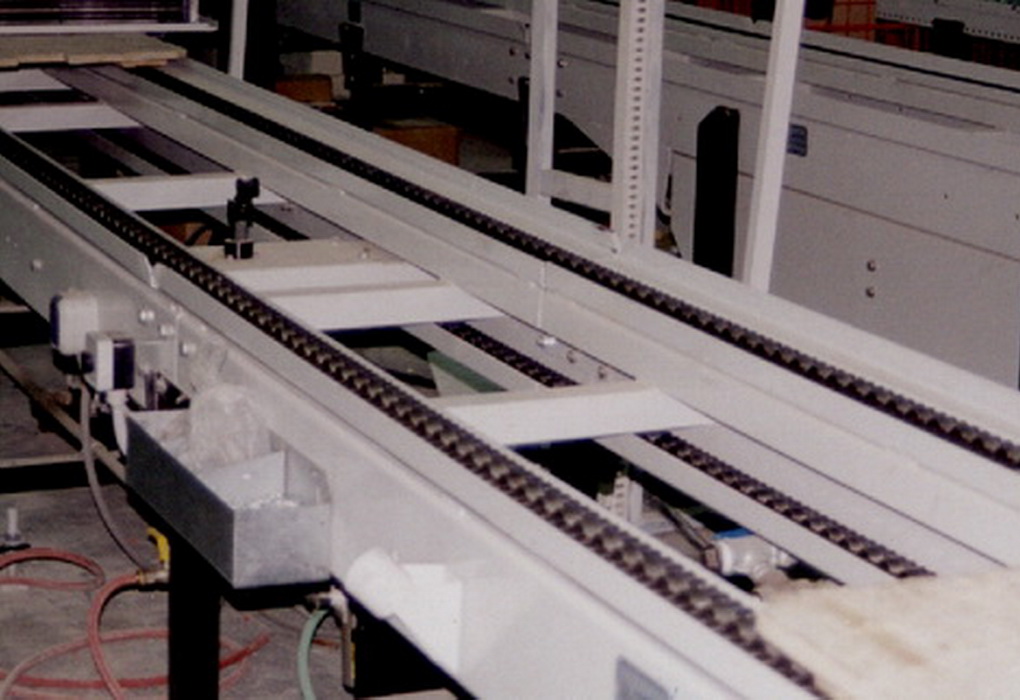

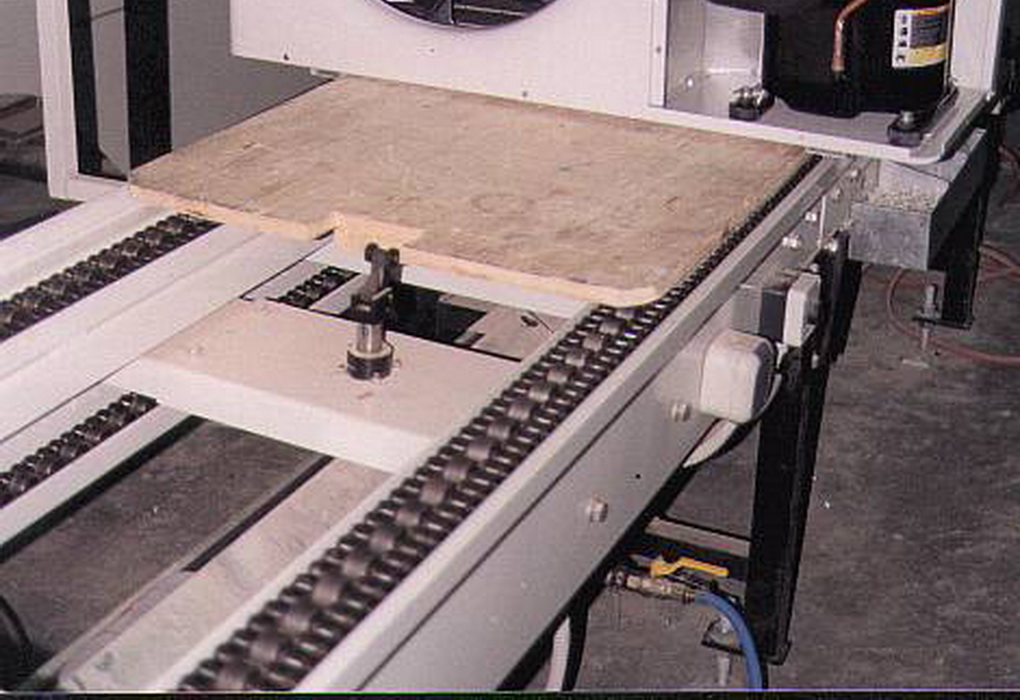

The CHA chain conveyor's main feature is its ability to allow the palettes carrying the job to be stopped at a workstation, while the traction element - the accumulation chain- keeps running under the palette thus offering a flexible assembly environment with independent dwell times for each station.

The return strands are running inside the chassis, thus protected against debris (fasteners, etc…) falling on the chain.

CHN & CHA Chain Conveyors

Applications

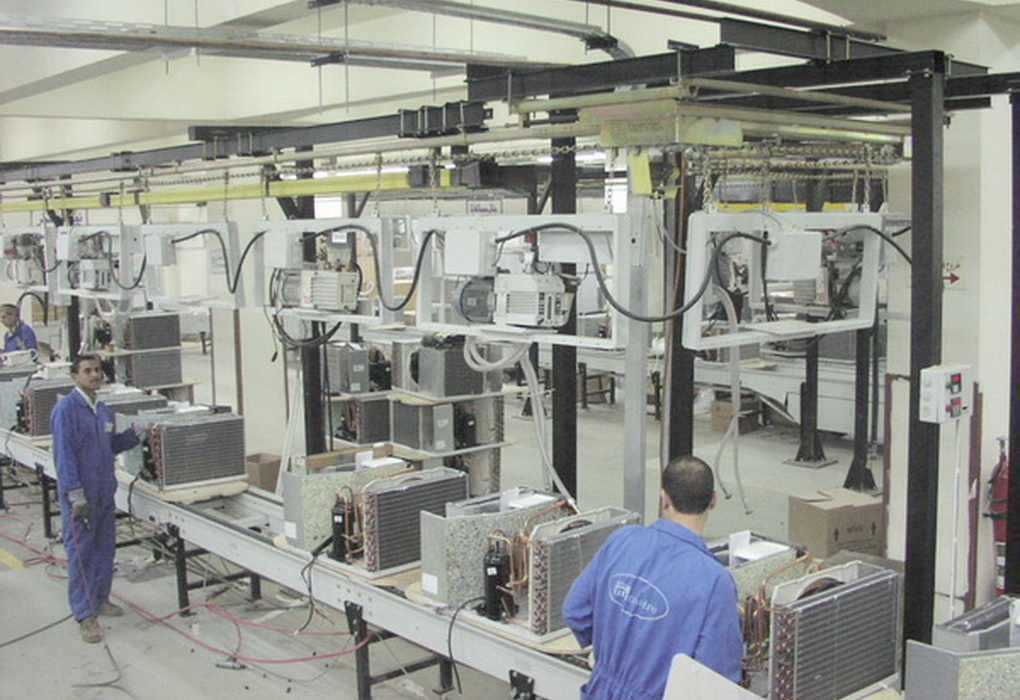

CHA Chain conveyors are mainly used in assembly lines, where items being manufactured travel on palettes.

These conveyors are used with great success in air conditioner manufacture, refrigerators, cooking ranges, washers, TV's computers, fans, and many other assembly processes.

The productivity gains are usually enough to justify moving to these automated or semi-automatic lines whereby the payback period is very short.

CHN Chain conveyors are similar to the CHA family of accumulation conveyors, with the exception that the chain does not allow any accumulation of goods.

These conveyors are used with great success in the transportation of unit goods, such as palettes, up to 1.6 tons in weight

CHN & CHA Chain Conveyors

CHN & CHA Specifications

CHN & CHA Chain Conveyors

Specifications
Loading Capacity 2000 N /m
Chain Type 12B-3

CHN & CHA Chain Conveyors

CHN & CHA Chain Conveyors

Linear Speed 2 to 15 m/min Variable speed drive recommended
Mains Supply 380 VAC +/-10%, 50 Hz 3 Phase
Motor Power Calculated based upon belt loading and conveyor length
Motor Class IP54
Insulation Class IP54
Take-up Method Gravity
Chain Support UHMWPE Green wear strip specially machined.
Dimensions
Standard Width (W) / Preferred Values
Outer Distance (Wo)
W 600 1400
Wo 630 1430

Standard Section Length
2490
Options The CHA & CHN family's Side Channels, are made in modules of 2490 mm length. Standard Section Lengths can be combined to obtain the nearest required length.
Modules are attached together using Butt Couplings, to obtain any desired length.
Exact lengths are available upon request.
